Fiberglass Grinder Manholes are a unique solution to the problem of mounting sewage grinders below grade.
The all-fiberglass construction means the unit has high-strength, is watertight, and is corrosion resistant…all at about 1/10th the weight of concrete with essentially no maintenance. Installing a Fiberglass Grinder manhole is easy and line downtime is minimal. Dig a hole, drop it in, and you are done!

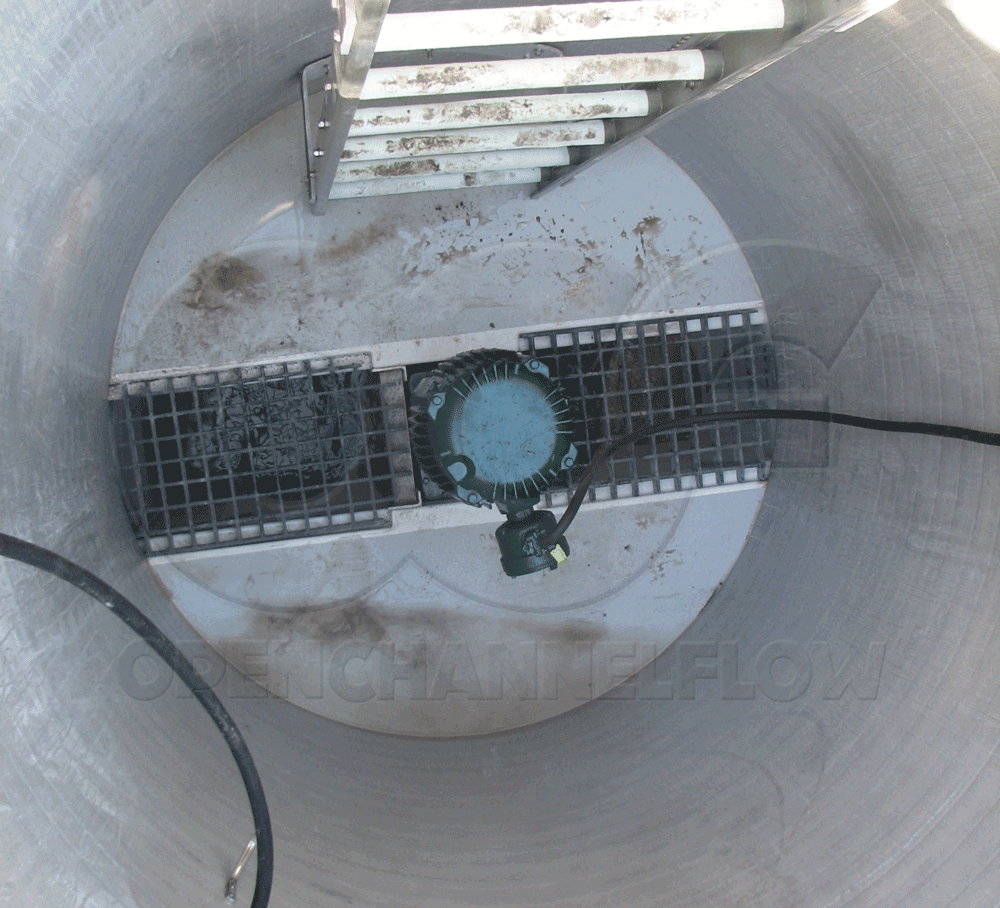

The grinder is recessed into a floor cavity and held in place by either in-channel stainless steel guides or full-height factory guide frames depending upon your needs.
Each Fiberglass Grinder Manhole come standard with:
- OHSA-compliant fiberglass ladder with non-slip ladder rungs
- Integral fiberglass grinder channel with non-slip gritted bench / shoulder
- Recessed, removable fiberglass grating (over the grinder channel)
- Stainless steel cabling hook (for spare power / control cabling)
- Manhole thru-wall coupling (for power / controls cabling)

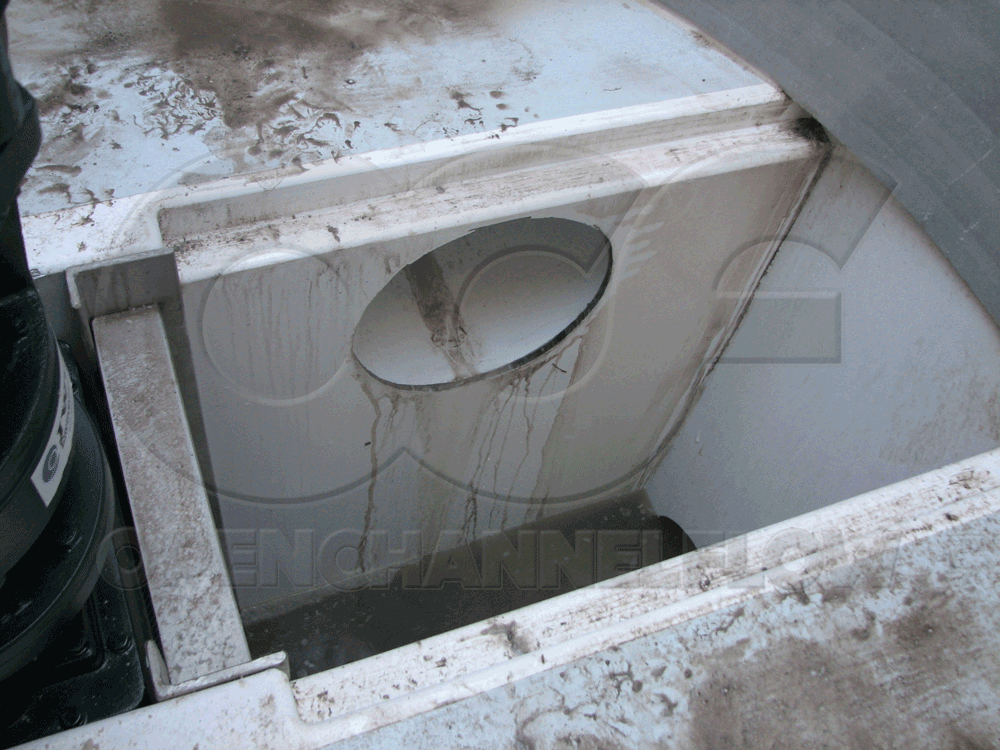

- Inlet / outlet piping with flexible couplings for quick pipeline connection
Openness
Fiberglass Grinder Manholes can designed to accommodate open channel grinders from the leading manufacturers, including:
- JWC® Environmental Muffin Monsters®
- Franklin Miller® Taskmasters®
- MonoFlo® Series ‘A’ Munchers®
Flexibility
With three distinct cover styles and three manhole diameters to choose from, Fiberglass Grinder Manholes can fit just about any installation.
Top styles include:
- Full opening domed top for maximum access
- Flat cover aluminum hatches for pedestrian areas / low profile installations
- Large diameter opening highway loading reducers tops
The standard diameter is 5’ [152 cm], with an optional 6’ [183 cm] diameter available. For space-constrained applications a 4’ [122 cm] diameter is offered.
Applications
Fiberglass Grinder Manholes have been successfully installed for:
- Prisons and jails
- Nursing and rehabilitation facilities
- Pump station protection
- Schools, colleges, and universities
- Industrial effluent maceration
- Food products and waste maceration
- Aircraft effluent
Wherever below grade maceration of sewage flow is required, Fiberglass Grinder Manholes can be installed!
Find out how Fiberglass Grinder Manholes can help you solve your below grade maceration needs.
