What is a Flow Measuring Weir?

A flow measuring weir is simply a structure over which water flows in such a way that volumetric flow rate can be calculated….it lets you know how much water is flowing. Many times a flow measuring weir is simply a thin plate across a flow stream, but weirs can also be broad, thick structures.

The thin plate (or sharp-crested) weir is usually used to measure watersheds, creeks, and small streams. They have also found a use in measuring industrial effluents in the form of weir plates, boxes, and channels.

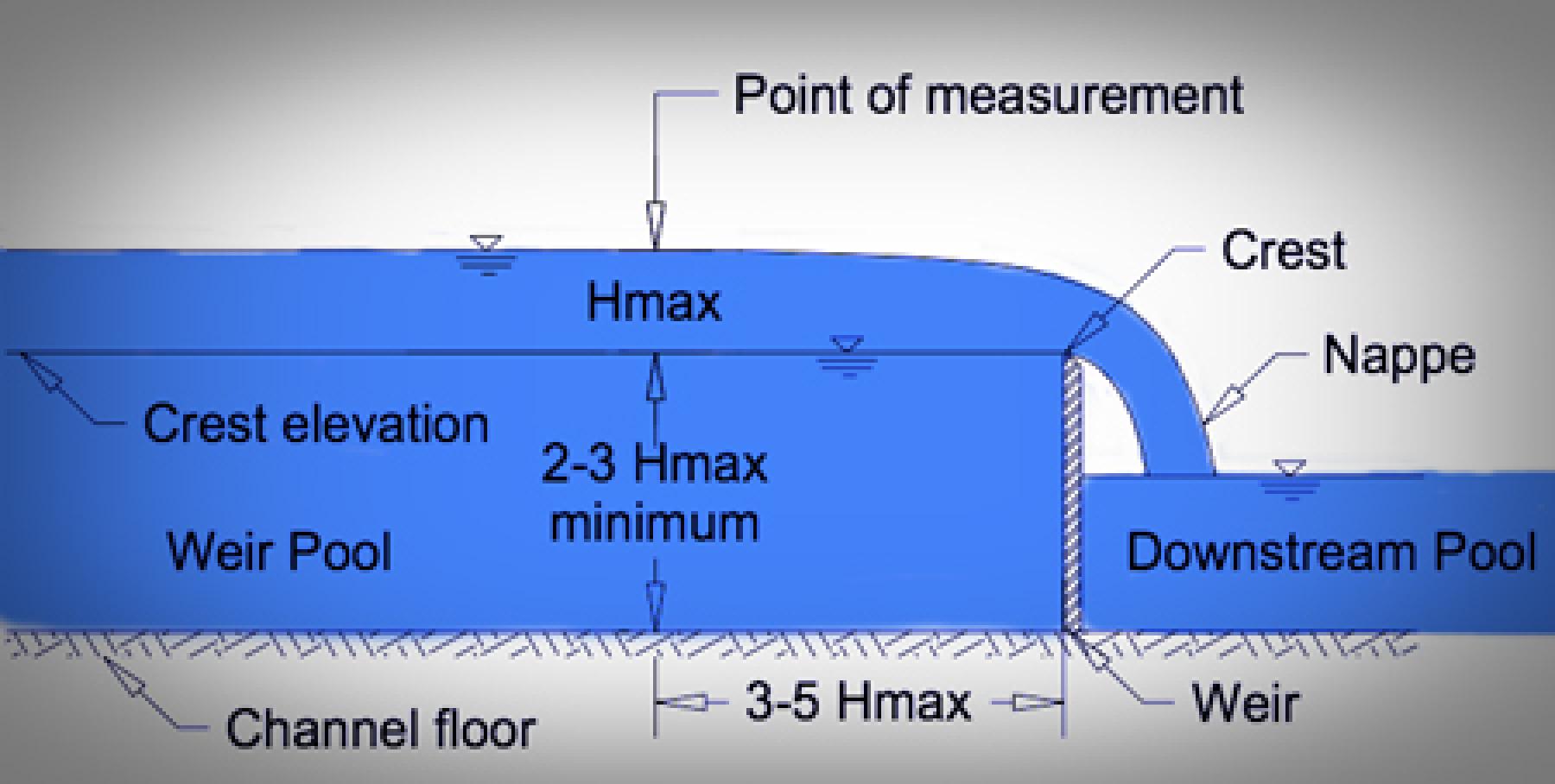

sharp-crested thin-plate weir for measuring the volumetric flow of water

Broad-Crested weirs are much thicker in cross section when compared to sharp-crested weirs. They are commonly used to measure the discharge of larger rivers and agriculture / irrigation canals.

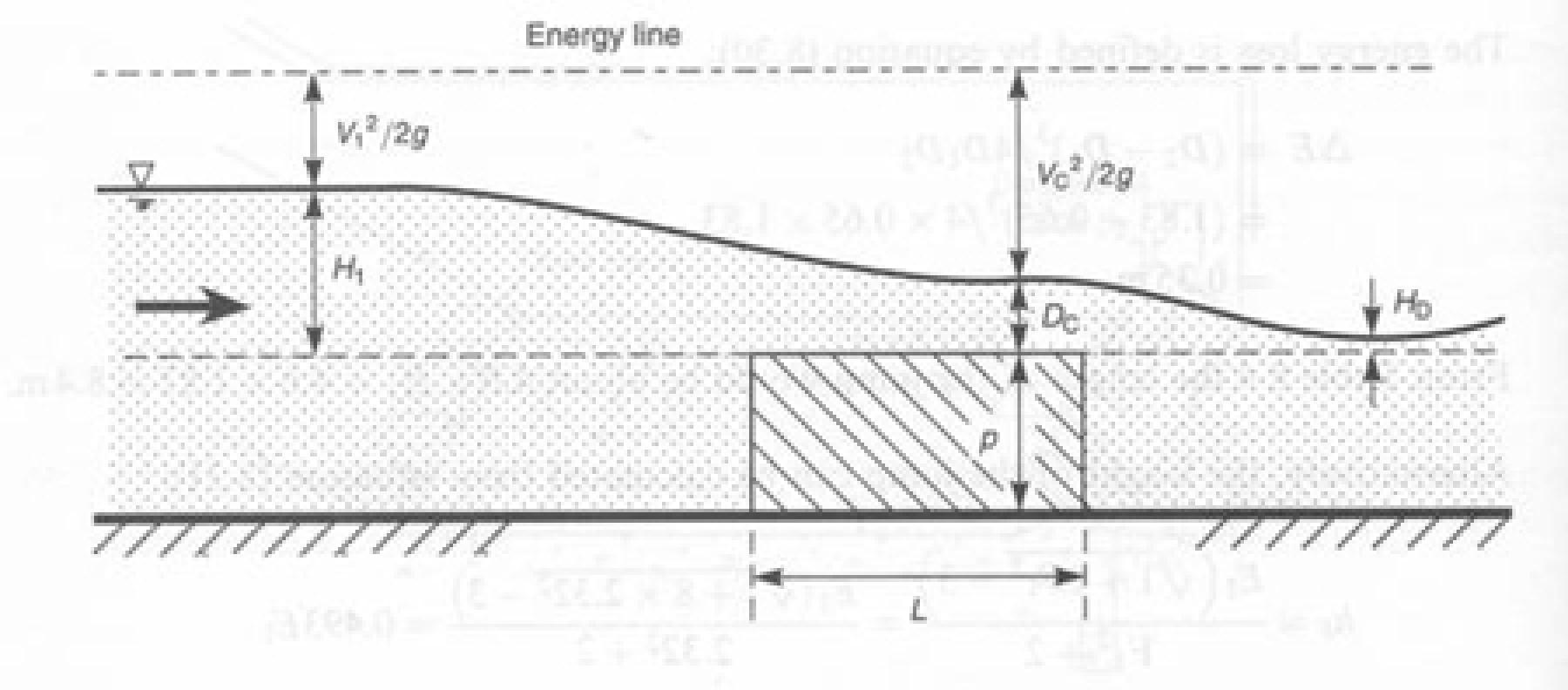

broad crested weir for measuring the volumetric flow of water

Sharp-crested weirs can be distinguished from Broad-Crested ones by the body of water (nappe) that springs from the downstream edge (crest) of the weir. Broad-crested weirs have the body of water passing over the weir and into the downstream channel with only a depression in the surface level of the water (there is no springing nappe).

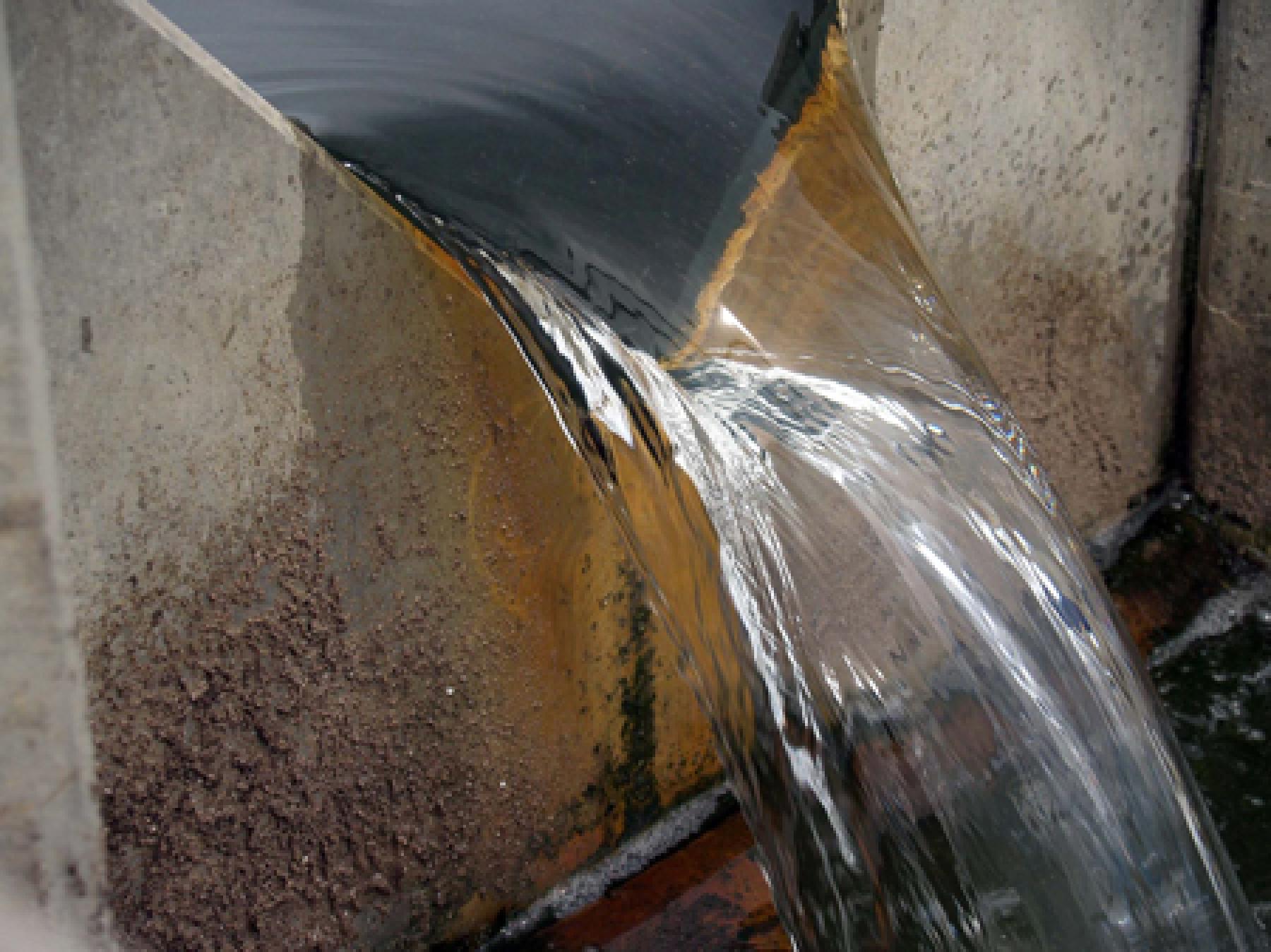

closed up on the nappe - body of water flowing over the crest - of a thin-plate v-notch weir measuring the volumetric flow of water

Sharp-crested weirs can be plates simply perpendicular to the flow axis or they have V-shape, triangular (Cipolletti), or rectangular cut-outs in then, but regardless of shape they are usually best for measuring smaller flows.

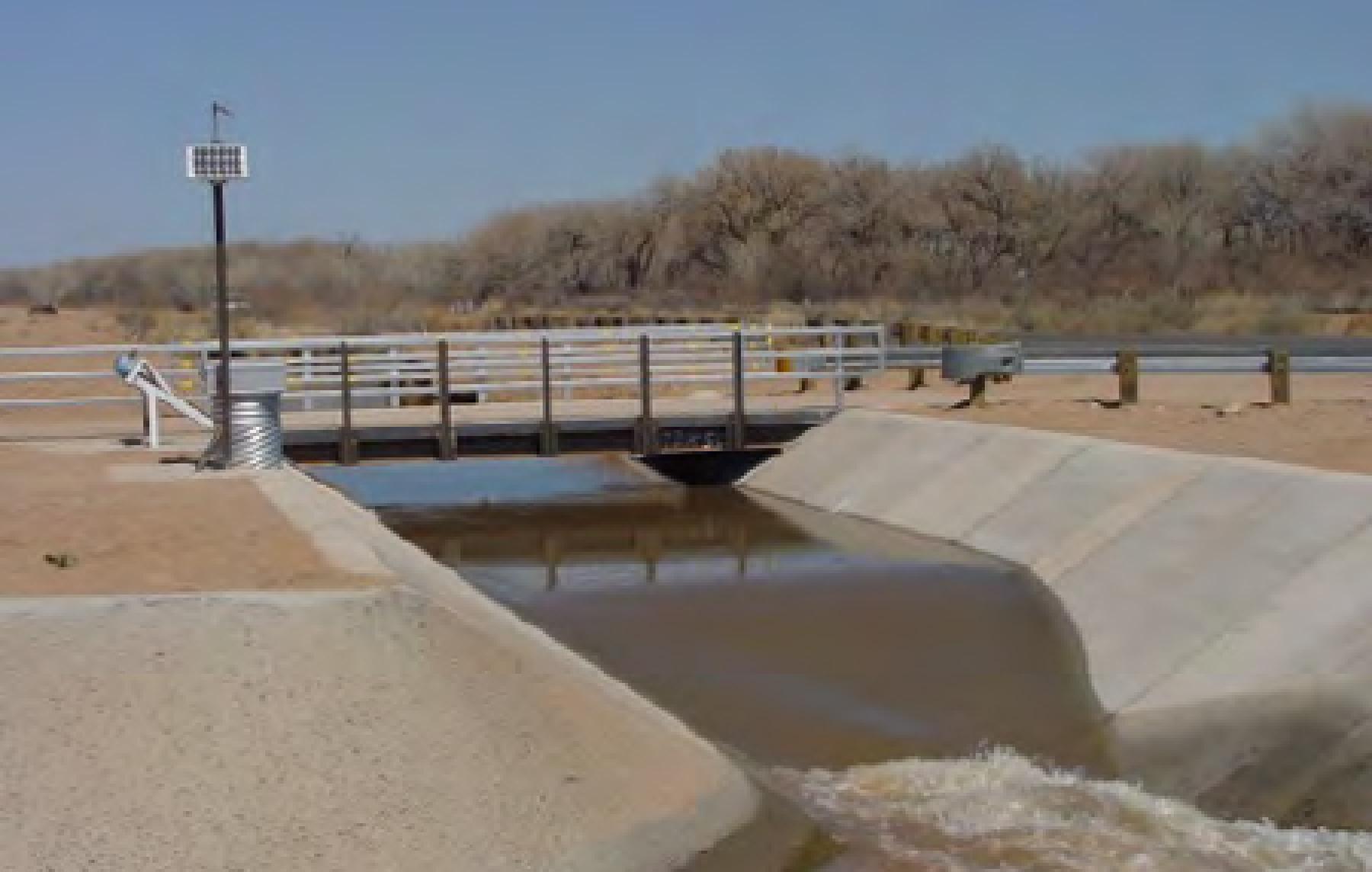

water gauging station with a broad-crested weir

Both sharp-crested and broad-crested weirs require that the approaching flow be sub-critical. Neither weir will operate in its usual accuracy range in the presence of critical or super-critical flow.

Source: Colorado State University
