H Flume Installations

In terms of installation and mounting, one of the most versatile flumes is the H Flume.

The flumes are suscessfully used in:

Above grade
At grade
Below grade
And manhole installations

This versatality in installation, combined with a wide range of styles and sizes, make the H flume one of the most popular flumes to meausre water and wastewater flows.

The wide range of mounting possibilities, can, however, lead to some confusion. With that in mind, we present below a series of different H flume installations to help installers see what configuraitons have worked in other applications in the past.

Fiberglass H flume suspended with free spilling discharge

Suspended H flume measuring spring discharge

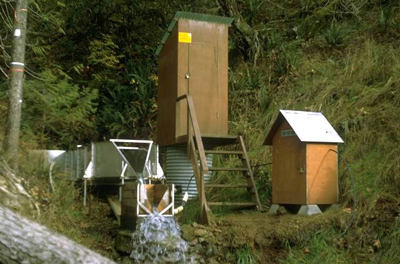

Elevated aluminum H flume installation

Elevated H flume installation

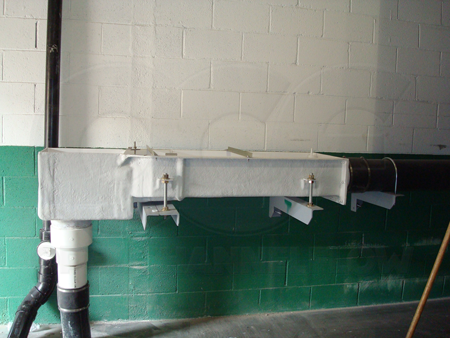

wall mounted H flume

Wall mounted H flume

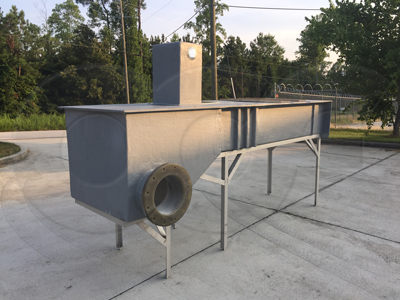

H flume with discharge box on stainless steel stand

H flume with outlet box on stainless steel stand

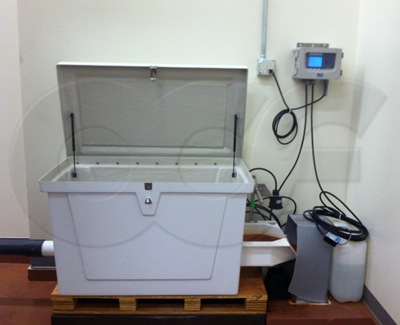

H flume mounted in a fiberglass enclosure

H flume mounted to concrete slab

H flume installed above grade on a concrete pad

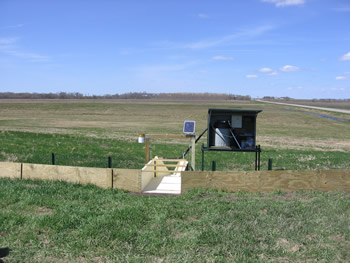

H flume surface installation

Surface installation of a H flume with plywood flow collection walls

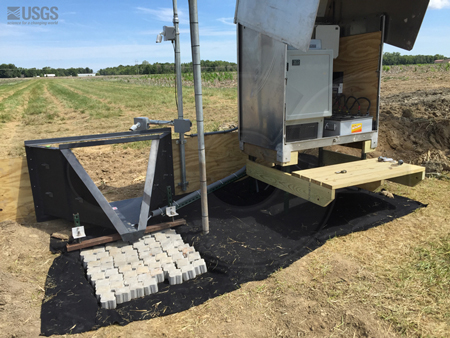

H flume with black gel coat for cold weather flow monitoring

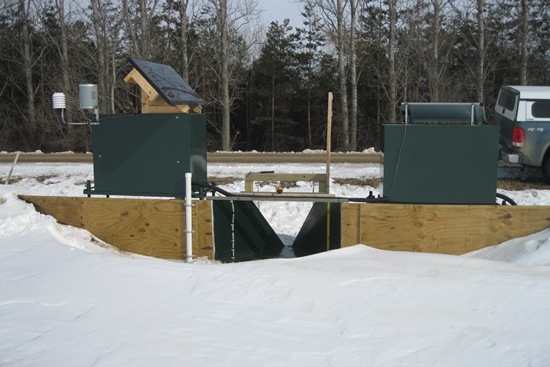

H flume installed to measure edge of field runoff

Above grade H flume measuring edge of field runoff

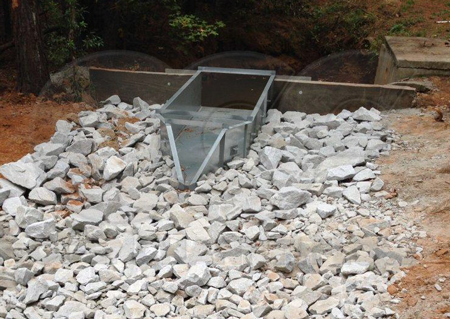

Above grade aluminum H flume

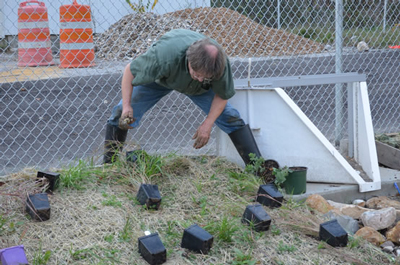

Street level H flume installation

H flume being embedded during installation in a earthen swale

H flume being during earthen embeddment

HL flume embedded in concrete

H flume with earthen bank surrounding

H flume with constructed earth / rock surround

H flume recessed used to measure watershed flows

Recessed H flume installation

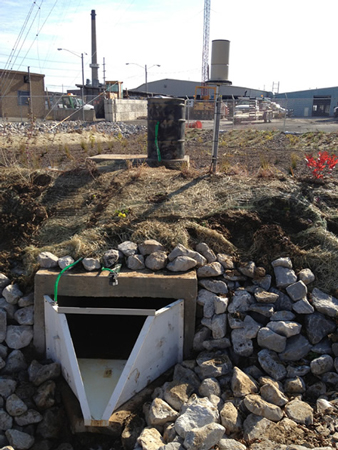

bioretention monitoring h flume installation

In-bank H flume used to meaure bioretention area

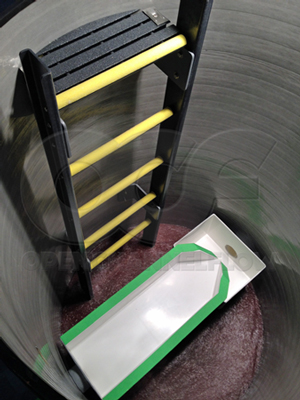

H flume factory installed in a fiberglass Packaged Metering Manhole

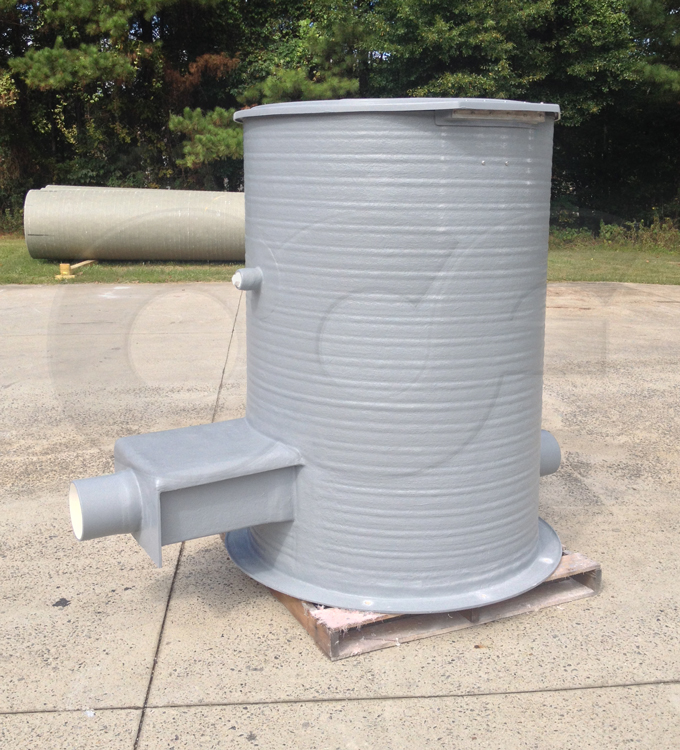

H flume installed in a fiberglass domed top Packaged Metering Manhole

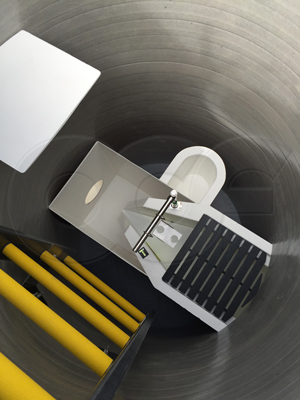

Packaged Metering Manhole with HS flume to measure dam seepage

Packaged Metering Manhole with HS flume measuring dam seepage

We hope that these photos help to answer some of the questions that you may have. We realized, though, that there are many, many more ways to install a H flume and we are happy to answer any questions that you may have. Remember: WE ARE HERE TO HELP!

Images: City of Columbia, MO, HJ Andrews Experimental Forest, Minnesota Department of Agriculture
