Packaged Metering Manhole Equipment Shelves

At flow monitoring stations where a Packaged Metering Manhole is used to measure / sample a flow stream, the flow monitoring and sampling equipment is usually housed either in a dedicated equipment shelter or in a nearby building. There are times, however, when neither option is practical. For those times, Openchannelflow offers Manhole Equipment Shelves.

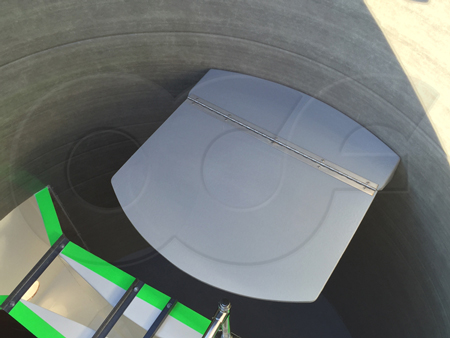

fiberglass Equipment Shelf mounted in a Packaged Metering Manhole

The most common use of a Manole Equipment Shelf in a Packaged Metering Manhole is the storage of a portable composite sampler – typically in a H-20 highway loading manhole where locating the sampler away from the manhole isn’t practical.

Openchannelflow Manhole Equipment Shelves are unique in that they are hinged to fold-up out of the operator’s way when not in use - either manually or through the use of stainless steel gas struts.

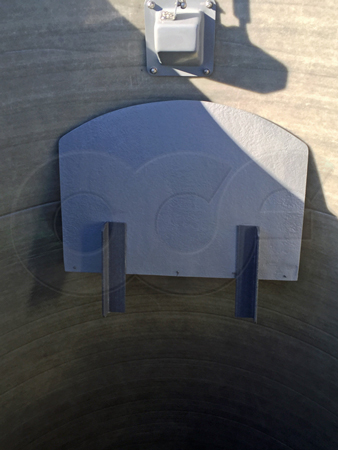

Manhole Equipment Shelf mounted in a Packaged Metering Manhole and stowed out of the operator's way

While not intended as a step, Openchannelflow Manhole Equipment Shelves can be designed to allow operators to use them to enter / exit the manhole. This can be useful when the manhole is shallow enough not to have a ladder. In applications where the shelf is not rated for this secondary use, a No Step warning label is applied.

Openchannelflow Manhole Equipment Shelves are available in both fiberglass and stainless steel construction. The shelves are bespoke to each application and can be sized to fit a wide variety of equipment and site conditions.
