Parshall Flume Installations

While not as varied as H flumes are in terms of their mounted, Parshall flumes can be installed in a number of creative ways to meet your flow measurement needs.

The flumes are suscessfully used in:

Above grade
At grade
Below grade
And manhole installations

Versitle in instalation and widely used, the Parshall flume is most famous of the short throated class of flumes and is widely used to measure both surface and wastewater flows.

The wide range of mounting possibilities, can, however, lead to some confusion. With that in mind, we present below a series of different Parshall flume installations to help installers see what configuraitons have worked in other applications in the past.

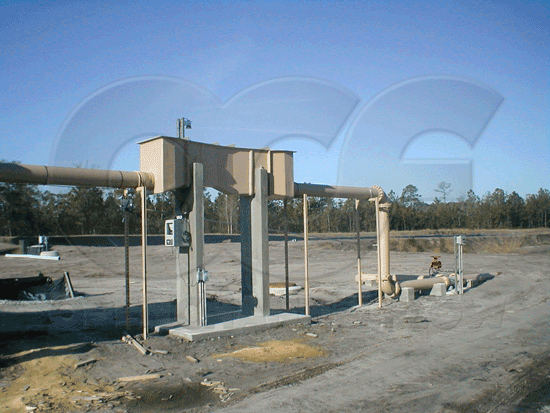

Elevated Parshall flume - not idea for meter calibration

Elevated Parshall flume - not ideal for flow meter calibration

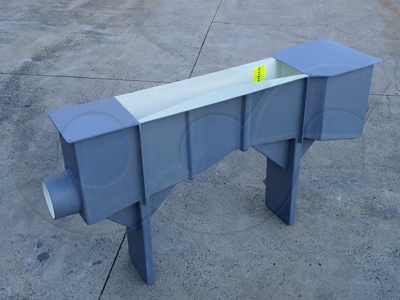

Parshall flume with elevated support legs

Parshall flume with adjustable, elevated support legs

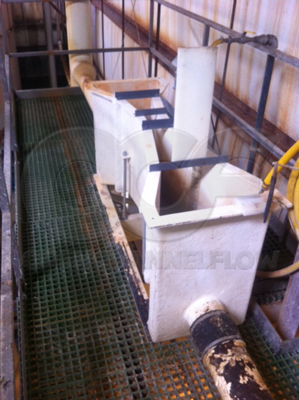

Above grade Parshall flume installation

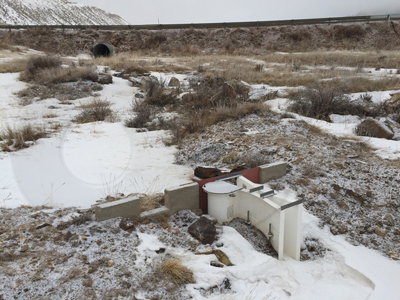

cold weather Parshall flume installed on grade

Cold weather Parshall flume installed on grade

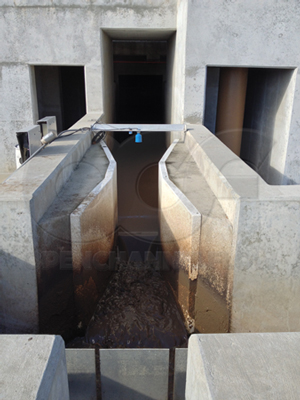

Headworks Parshall flume installed for free spilling discharge

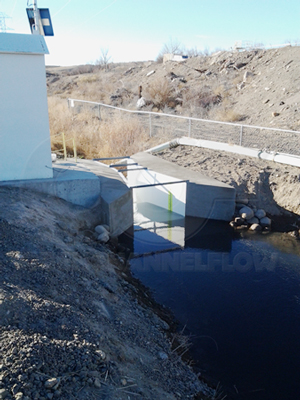

Cooling water parshall flume installed in an earthen channel

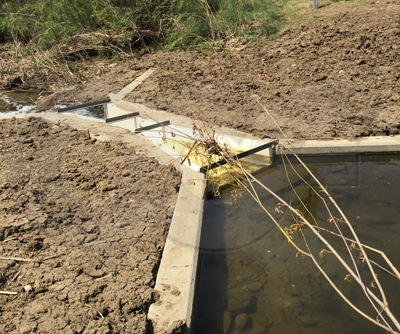

Packed earth installation of a Parshall flume

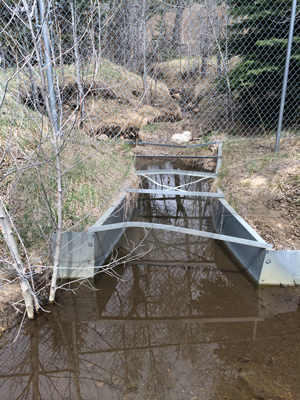

Earth embedded Parshall flume

Earth embedded Parshall flume - also a cautionary example of why to not use thin gauge flumes

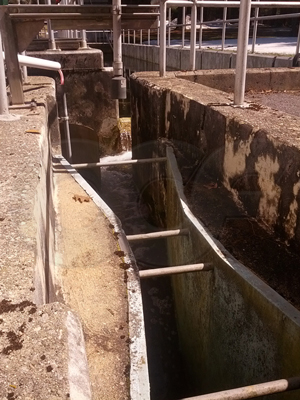

Parshall flume cast into a concrete channel at a WWTP

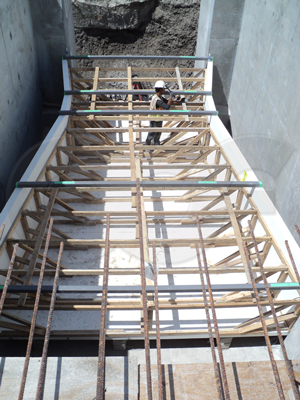

120-inch Parshall flume being cast into a concrete channel

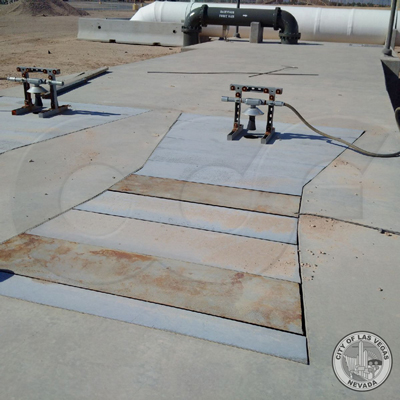

Below grade Parshall flume chamber at a WWTP headworks

Near grade installation of a Parshall flume measuring industrial discharge

Near grade Parshall flume vault

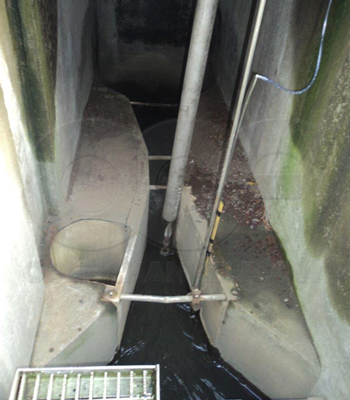

Parshall flume installed below grade in a concrete chamber

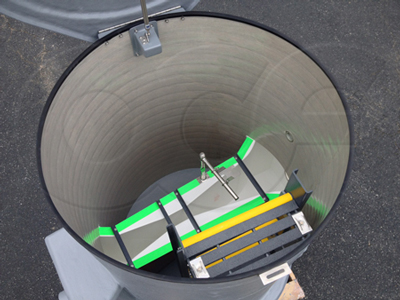

3-inch Parshall flume factory integrated into a fiberglass Packaged Metering Manhole used to monitor industrial discharge compliance

3-inch Parshall flume factory installed in a fiberglass Packaged Metering Manhole

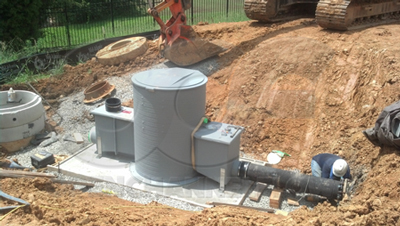

Packaged Metering Manhole with Parshall flume undergoing installation

Domed top Packaged Metering Manhole with integral Parshall flume mounted to slab

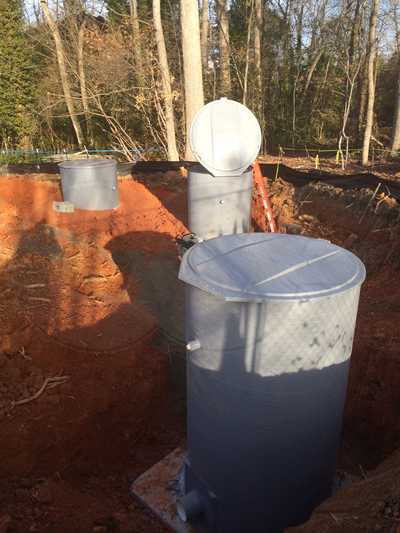

Fiberglass manholes during installation

We hope that these photos help to answer some of the questions that you may have. We realized, though, that there are many, many more ways to install a Parshall flume and we are happy to answer any questions that you may have.

Remember: WE ARE HERE TO HELP!
