Aluminum Parshall Flumes
Aluminum Parshall (and Montana) Flumes can be a good choice where resistance to abrasion or physical damage is required but where the flume must be light enough to move from site to site or to a remote area. Aluminum Parshall Flumes are most commonly used to measure dam seepage, remote watersheds, and mine dewatering flows.
Aluminum Advantages
Aluminum Parshall Flumes from Openchannelflow have good resistance to abrasion / damage, are lightweight, have tight dimensional tolerances, and are available with a selection of accessories and mounting / end configuration options.
Contact Openchannelflow for additional details.

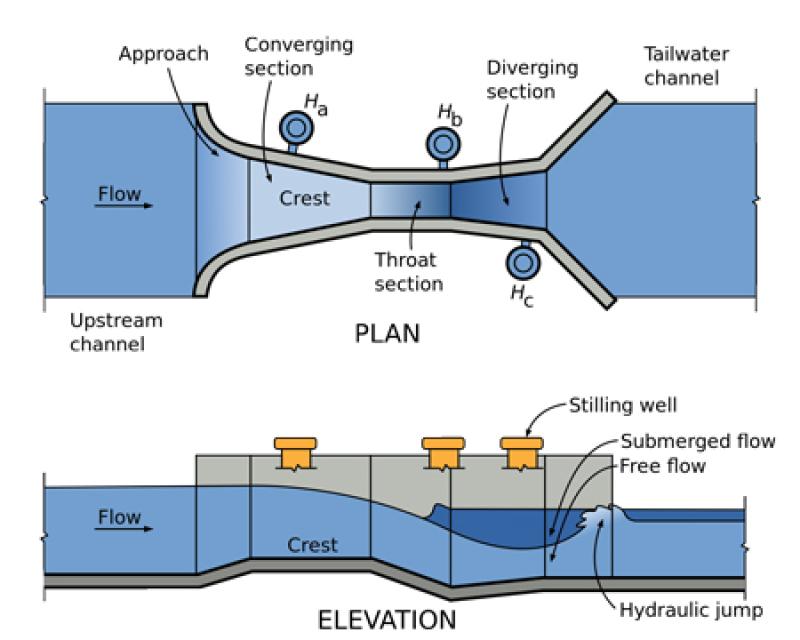

How a Parshall Flume Works
Parshall flumes are a class of short throated flumes. Originally developed in the 1920's, the Parshall flume has become the most researched style of flume leading to its wide acceptance and use in a variety of applications. In North America, the Parshall flume is…

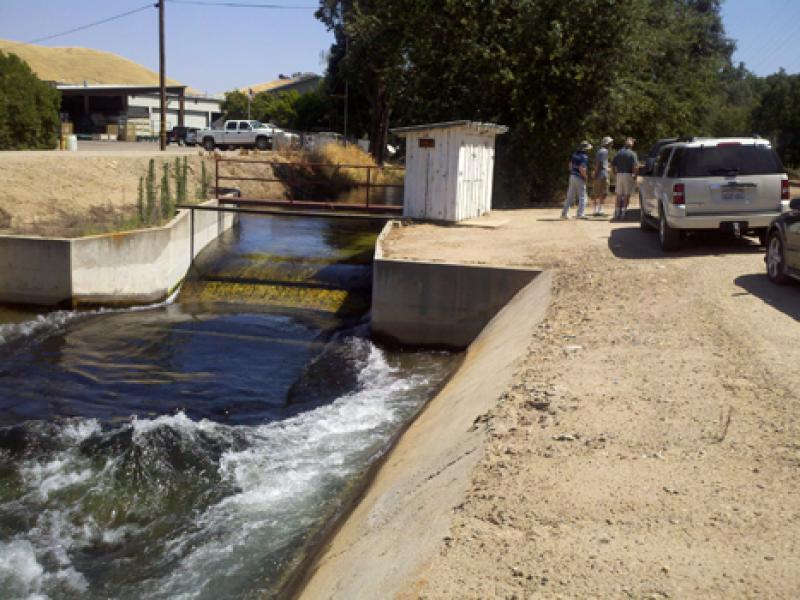

Parshall Flumes: Free and Submerged Flow
There are two conditions of flow that can occur in a Parshall flume: free-flow and submerged (drowned) flow. Free Flow Free-flow occurs in a flume when there is insufficient backwater to reduce the discharge through the flume. The primary advantage of free-flow is…

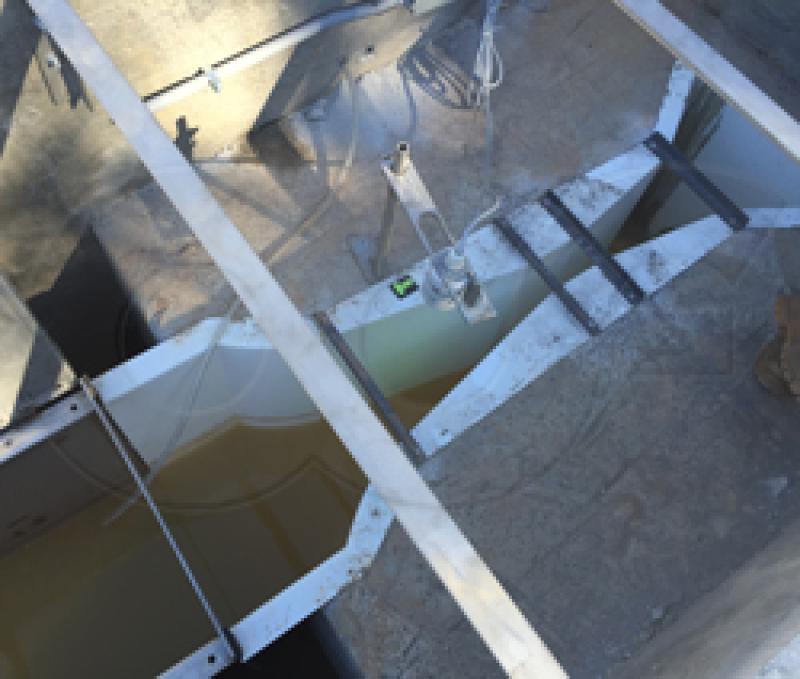

How to Read a Parshall Flume
One of the advantages of the Parshall flume is how easy it is to use! Unlike Palmer-Bowlus or RBC flumes, there are no zero height offsets to worry about. Just inspect the flume, find the point of measurement, and stick / gauge to the bottom of the flume. Under…
The heavy-duty construction of Openchannelflow aluminum Parshall Flumes provides good resistance to both abrasion by flow stream sediments and damage by physical abuse. This resistance to damage is advantageous in mine dewatering applications.
The 5052 alloy used in Openchannelflow aluminum Parshall Flumes provides excellent corrosion resistance, particularly against seawater and salt sprays. Aluminum construction is not, however, recommended for Parshall Flumes measuring raw, sanitary flows. Fiberglass or stainless steel are better materials.
Aluminum Parshall Flumes weigh somewhat less than similar fiberglass ones - at about 1.5 lbs/ft2 [7.3 kg/m2] versus ~2.25 lbs/ft2 [11 kg/m2] - meaning that they are easily handled, are more portable, and require less manpower / equipment to install than Parshall Flumes constructed of other metals.
Skilled metal fabrication means that aluminum Parshall Flumes can have dimensional tolerances of:
Throat
- 1/8-inch [3.18 mm] (12-inch or smaller Parshall Flumes)
- 1/4-inch [6.3518 mm] (18-48 Parshall Flumes)
Other Flume Dimensions
- 1/8-inch [3.18 mm] (12-inch or smaller Parshall Flumes)
- 1/4-inch [6.3518 mm] (18-48 Parshall Flumes)
The above dimensions are within the +/-2% of nominal required by ASTM D1941-91(2013) Standard Test Method for Open Channel Flow Measurement of Water with the Parshall Flumes.
While larger Parshall Flume sizes are available, it is uncommon to see them constructed out of aluminum due to cost.
Aluminum construction does not lend itself to as many accessories or mounting / end configuration options as stainless steel or fiberglass Parshall Flumes. Still, many of the more common ones are available.
